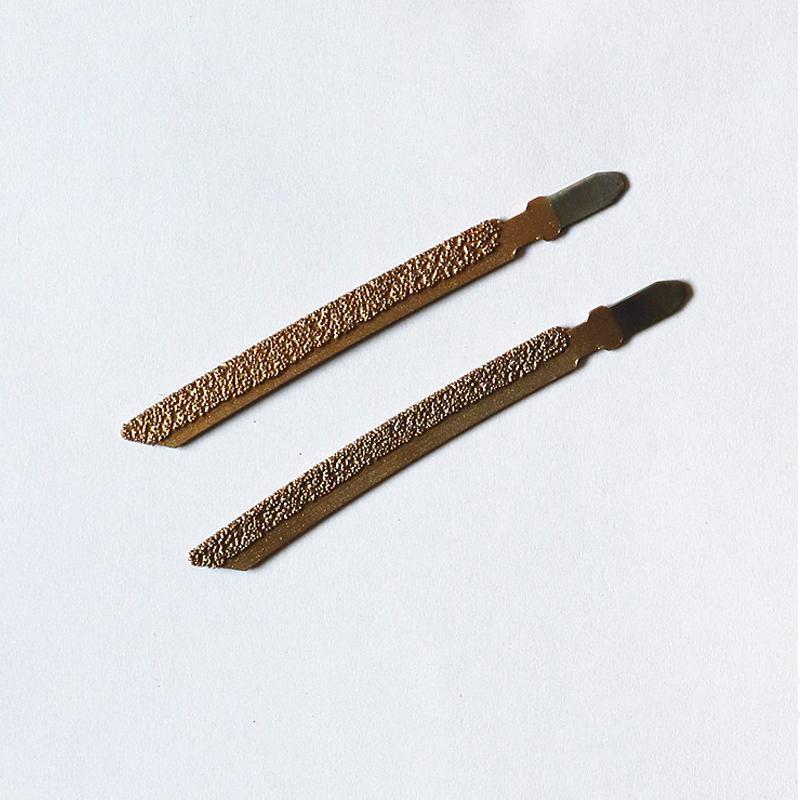

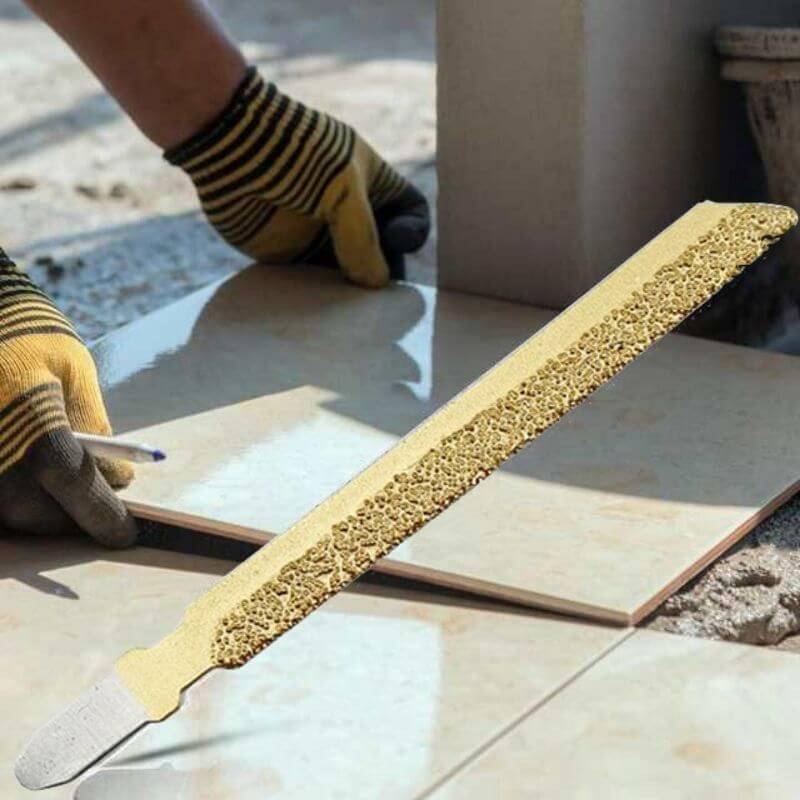

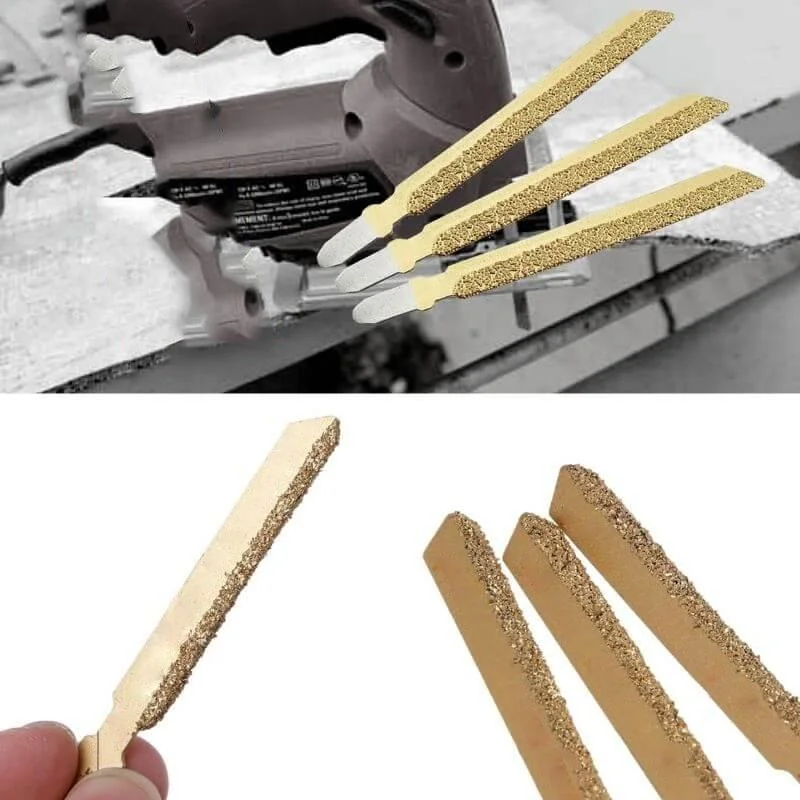

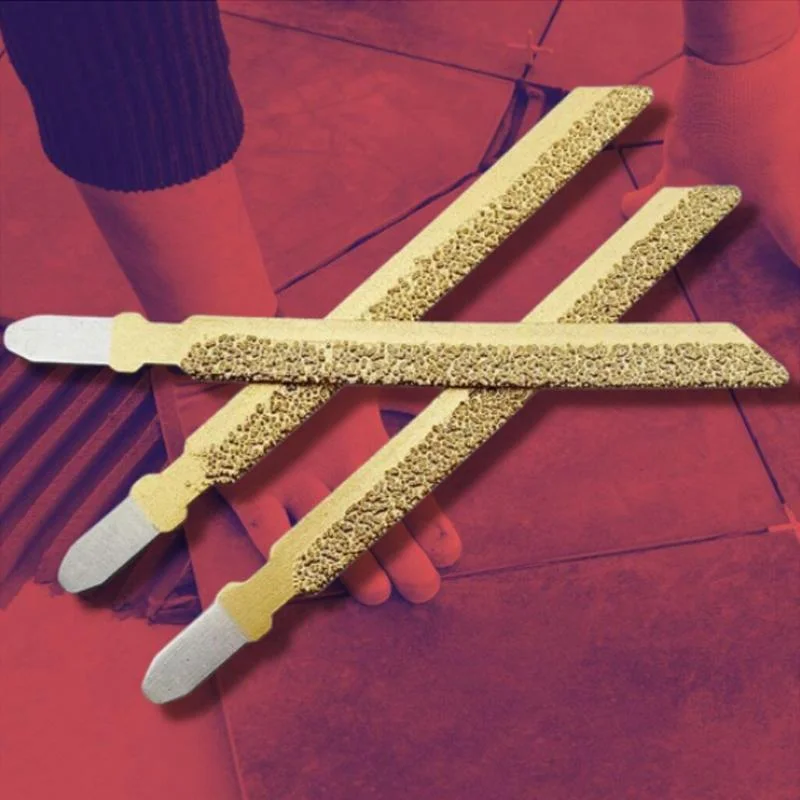

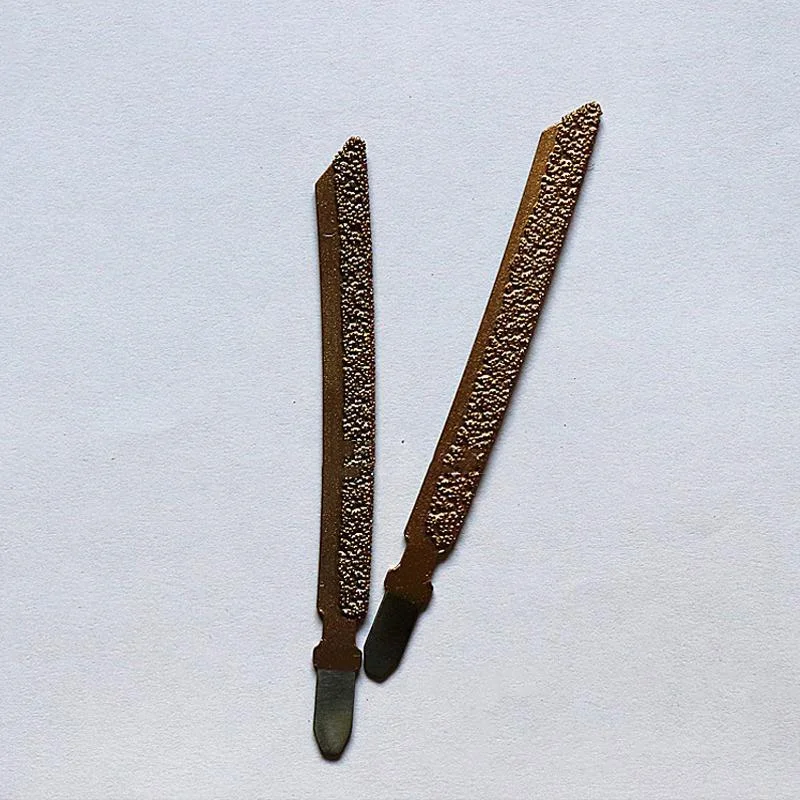

Diamond Tile Cutter Blades

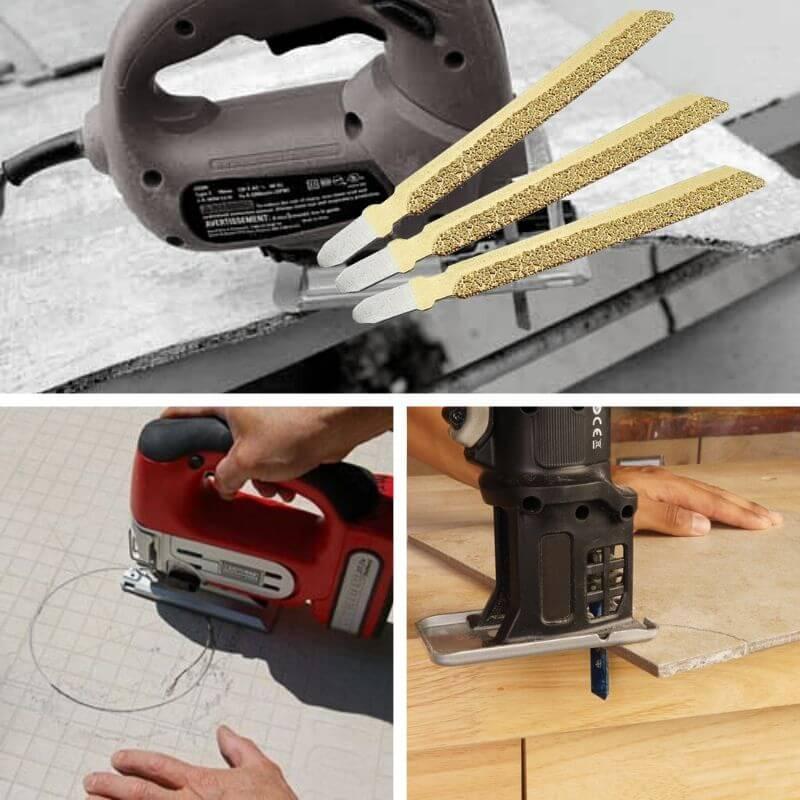

Tile Cutter fits all universal T-Shank jigsaws with a support roller guide

Suitable for all detail cuts and shapes. Make accurate and tidy cut-outs into your tiles.

Ideal for neat and split free tile work. The perfect milling blade for making cut-outs and holes in tiles for split free fitting of switches and sockets.

FEATURES

• For cutting hard materials, including porcelain and ceramic tile
• Heat treated alloy steel backer for superior strength
• High quality durable diamonds for a thinner cut
• Diamonds are attached with a high quality brazing technology to ensure they don’t come off
• Strong and easy to control blade for fast cutting
• Easy to clean by rinsing with hose or in clean water after each use

INSTRUCTION

• Install the DIAMOND Tile Cutter blade into your jigsaw like any other jigsaw blade.
• Before working the ceramic tile, soak it completely for approx. 4-5 minutes in water (this will extend the bit’s durability and helps reduce harmful dust)
• Place the water soaked tile on two strips of wood (to allow Diamond Tile Cutter blade to operate freely) with finished side facing downward and drill a hole with at least Ø 3/16 (4mm) drill bit into the tile inside your cutting line. You want to drill the hole in the section that is to be cut out.

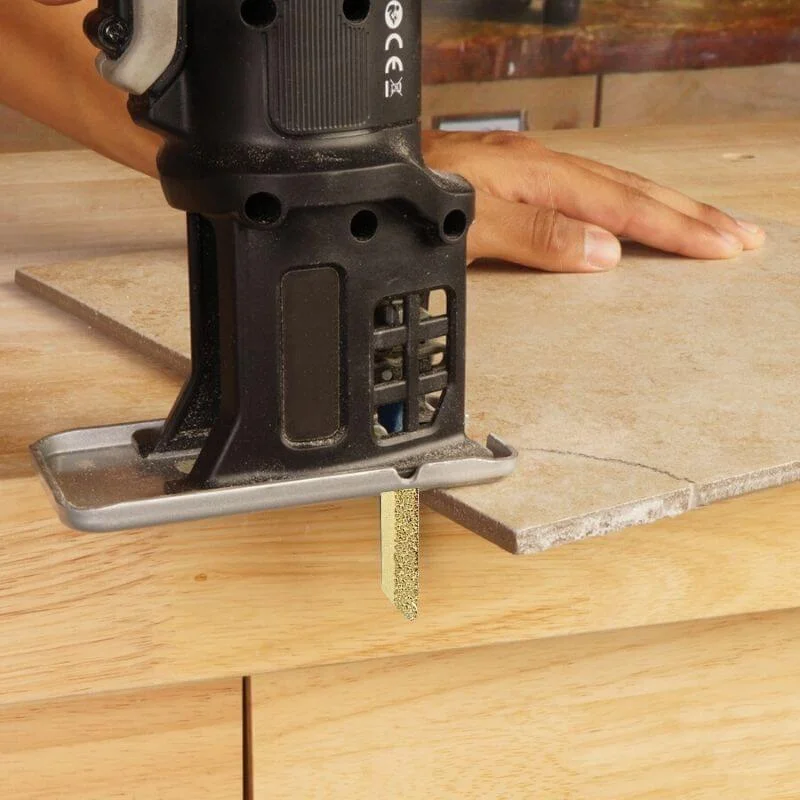

• Insert tile cutter in hole and cut (milling) out designated shape by carefully pressing jigsaw guide wheel [moderate pressure or risk of breaking Diamond Tile Cutter] forward against the uncoated side of the bit. Near high speed or high speed should work best.

SPECIFICATIONS

• Material: Brazing diamond

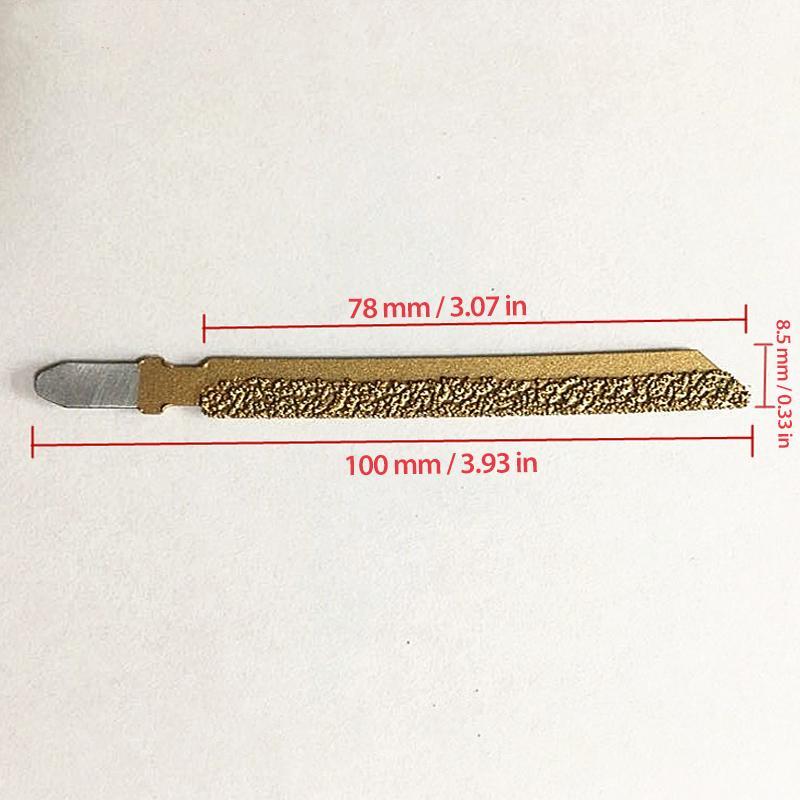

• Size: 4 inches
• Color: as shown
• Package: 1 * Diamond Tile Cutter Blade
